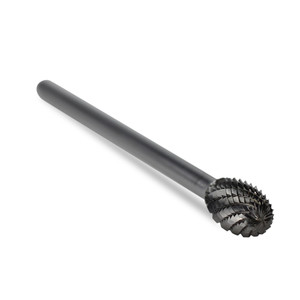

Black Hawk Abrasives Egg Shape Tungsten Carbide Bur, Double Cut with Extended Length 1/4" Shank is designed for vibration-free precision cutting, fast stock removal, long useable life, and access to hard to reach areas. These long carbide rotary burrs feature precision ground flutes cut from premium tungsten carbide using five axis CNC machines. The flutes are affixed to the 6" long x 1/4” diameter shank during a soldering and sintering process that uses silver, which preserves the cobalt content thus increasing each burrs lateral strength and durability. The longer 6-inch shaft provides additional reach, making it easier to access hard-to-reach areas for deburring and other applications.
These die grinder bits are SE oval shape with double cut teeth. SE oval/egg burr bits can be used for a wide variety of applications but excel at contouring especially in confined, hard to reach areas. Double cut means the flutes are cross-cut which creates smaller chips resulting in faster cutting, superior operator control, and reduced loading. Double cut rotary files like these are the ideal choice for harder materials such as steel, stainless steel, or ferrous metals as well as titanium, nickel, fiberglass, plastic, and hard rubber.
These tungsten carbide burrs with 1/4-inch shank diameter attach to pencil grinders, die grinders or rotary grinders (electric or pneumatic). The 6-inch long shaft provides additional reach, making these carbide burrs even more versatile for a wide variety of applications.
(SOLD INDIVIDUALLY)
Features:
• Premium tungsten carbide
• Five-axis CNC precision cut flutes for unmatched uniformity and balance (vibration Free cutting)
• Silver weld between head and shank – stronger bond than industry standard copper weld
• Double-Cut flute designed for improved operator control, faster stock removal, smaller chips, and minimal loading. More effective on harder materials than single or aluma cut.
• 6 inch long extended shaft for greater reach into more confined spaces.
Suitable For:
• Steel
• Stainless Steel
• Cast Iron
• Iron Alloys
• Titanium
• Nickel
• Inconel
• Chrome
• Brass
• Bronze
• Fiberglass
• Plastic
• Hard Rubber
• Wood
Uses Include:
• Deburring
• Contouring
• Edge chamfering/rounding
• Milling out in preparation for build-up-welding
• Preparation of weld seams/weld dressing
• Cleaning cast material
• Modification of workpiece geometry
• Engraving
• Precision grinding
Use on:
• Die grinder
• Rotary grinder
• Pencil grinder
• Dremel rotary tools
*DO NOT use on portable power drill. They run too slow and may result it chipping.
Specs:
• Burr Shape = Oval / Egg
• Cut Type = Double
• Shank Diameter = 1/4"
• Shank Length = 6"
• Recommended / Max RPM = (See Carbide Burr Speed Recommendation Chart)
• Material = Tungsten Carbide
• Type Available = SE-1, SE-3, SE-5
